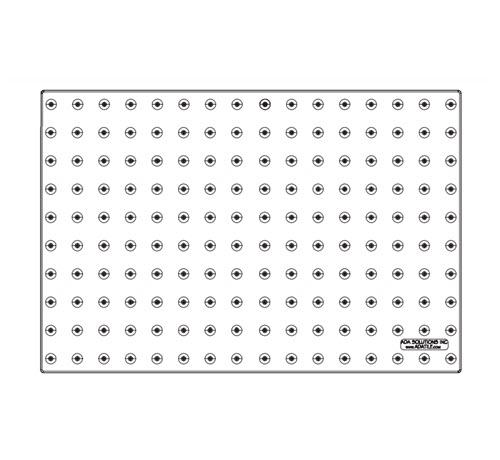

36 in x 60 in ADA Solutions Cast-in-Place Wet Set Paver Panel - Yellow
PART36X60PAV2Y
Calculating price...
In Stock
QUANTITY
About this item
Our Cast-in-Place, Wet Set Composite Shell Paver Panels contain embedment ribs, spaced 76mm (3”) apart, across the entire backside of the panel. During insertion, each rib cavity becomes filled with concrete, creating a permanent, unremovable bond with the underlying substrate. ADA Solutions Tactile Warning Surface Indicator System is easy to install and is made with HD exterior-grade fibreglass reinforced polymer composite material.
Features
Industry-leading Anti-Slip Surface
Fibreglass Reinforced Polymer Composite Material
60mm (2.35”) Centre to Centre Dome Spacing – AODA/CSA/ISO Compliant
Tactile body thickness is 6.4mm (0.25”) which excludes the 5mm (0.20”) truncated dome, with a 35mm (1.4”) long four (4) sided perimeter flange with a minimum of eleven (11) embedment flanges spaced equally at 76mm (3”)
4.8mm (0.188”) thick embedment flanges that contain three (3) 16mm (0.625”) hole throughout the flange
Available in various sizes and colours
Manufactured in an ISO 9001 QC Approved Facility
Complies with all ASTM & ULC Test Requirements
25 pcs/ctn
Make & Model
Brand
---
Part #
---
Specifications
Color Family
White
Certifications & Standards
TAA/BAA Compliant
1
Packaging Dimensions
Height
7.800
